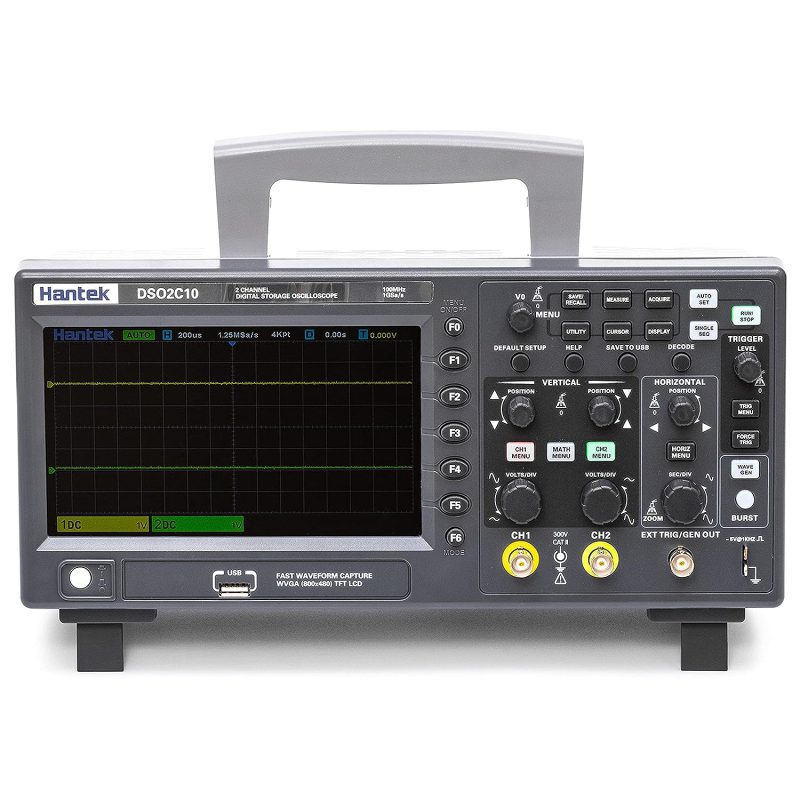

اسیلوسکوپ دیجیتال دو کاناله HANTEK DSO2C10

اسیلوسکوپ Hantek DSO2C10 یکی از ابزارهای مهم جهت بررسی سیستم های الکترونیکی, مخابراتی والکترونیک می باشد. اسیلوسکوپ DSO2C10  توسط شرکت hantek تولید و روانه بازار گردیده است. این دستگاه اندازه گیری دامنه, فرکانس, اختلاف فاز , زمان تناوب ,  بررسی نیمه هادیها و…..را فراهم می سازد.
اسیلوسکوپ حافظه دار دیجیتال Hantek DSO2C10، یک DOS 100MHz ارزش محور است که نرخ نمونه برداری real time را تا 1GSa/s را فراهم می کند. این واحد به اندازه ای کم و سبک است که به راحتی قابل انتقال و دارای عملکرد ریاضی FFT باشد.

مشخصات

اسیلوسکوپ دیجیتال دارای 2 کانال
رنج فرکانس تا 100 مگاهرتز
سرعت نمونه برداری 1GS/s
8M Record Length
دارای صفحه نمایش TFT رنگی 7 اینچ
دارای تابع FFT
14 مدل تریگر
ولت متر 2 کاناله
رزولوشن 8 بیتی
دارای پراب گیره ای همراه محصول
دارای پراب سوسماری همراه محصول
32 نوع اندازه گیری اتوماتیک
قابل اتصال به PC با پورت USB
USB FLASH

Introduction

Cost-effective economy oscilloscope, 150MHz Bandwidth, 1GSa/s, 8M memory depth; with 1CH 25MHz waveform generator, support arbitrary waveform output; 14 kinds of trigger modes, standard with 5 kinds of serial protocol triggers and decodes; 32 kinds of auto measurements with statistics; 3-digit digital voltage meter and 6-digit hardware frequency indicator functions; 2 sets of DVM; Abundant SCPI remote command control. It is a useful commissioning instrument for various fields such as communication, aerospace, national defense, embedded systems, computers, research and education

Feature

2 channels which are respectively controlled by independent knobs
100 MHZ and 150MHZ analog channel bandwidth
Sampling rate up to 1 GSa/s
8M memory depth
Vertical range 2mV/div ~ 10V/div
Vertical resolution: 8bit
Trigger: Edge, Pulse, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC
BUS decode and protocol analysis: RS232/UART, I2C, SPI, CAN, LIN
Can save multiple data formats, such as settings, waveforms, reference waveforms, CSV, pictures
A 3-digit digital voltage meter and a 6-digit hardware frequency indicator
32 kinds of auto measurements with statistics, real-time statistics of maximum, minimum, standard deviation and etc.
2 sets of digital voltmeters
Support threshold testing, free measurements within the screen
Abundant SCPI remote command control
USB Host/Device.

Specification

Number of channels: 2
Sampling frequency: 1GSa/s (single channel) 500MSa/s (two channels)
Resolution: up to 12 bits
Input coupling: DC, AC, GND
Input impedance: 1MΩ±2% ‖20pF±3pF
Probe attenuation coefficient: 1X, 10X, 100X, 1000X
Voltage rating: 300V CAT II
Maximum input voltage: 300VRMS (10X)

Horizontal

Waveform interpolation: (sin x)/x
Maximum recording length: 8M (one channel), 4M (two channels)
Horizontal scale range: 2ns/div~100s/div 1, 2, 5 step by step
Time base mode: Y-T, X-Y, Roll
Zero offset: ±0.5 div x minimum time base run
Sampling frequency and delay time measurement accuracy: ±25ppm

Vertical

Frequency bandwidth: 100 MHz
Rise time: 3.5 ns
Vertical resolution: 8 bits, each channel samples simultaneously
Vertical sensitivity: 2mV/div to 10V/div
Offset range ≥ 200mV/div, ±1V, ＜200mV/div ±50V
Mathematical operations: +, -, ×, ÷, FFT
FFT window: Rectangle, Hanning, Hamming, Blackman, Bartlett, Flattop
Bandwidth limit: 20 MHz

Triggering

Trigger type: edge, pulse width, slope, timeout, window, pattern, interval, UART, LIN, CAN, SPI, IIC
Trigger level range: ±5 divisions from the center of the screen
Trigger mode: Auto, Normal, Single
Hold range 8ns to 10s

Measurement

Voltage difference between cursors △V
Time difference between cursors △T
Inverse △T, in hertz (1/△T)
Automatic measurement: frequency, period, average, peak-to-peak, RMS, minimum, mixmum, rise time, fall time, + width, – width, base, top, middle, amplitude, overshoot, preshoot, rising edge phase difference, falling edge phase difference, + duty, – duty, period average, PRMS, FOVshoot, ROVshoot, BWIDTH, FRF, FFR, LRR, LRF, LFR, LFF
DC RMS, AC RMS, DC measurement type.
Frequency measurement: 6-bit

Generator

Number of channels: 1
Sampling frequency: 200MSa/s
Vertical resolution: 12 bits
Maximum frequency: 25 MHz
Standard waveforms: sine, square, ramp, exp, noise, DC
Arbitrary waveforms: Arb1, Arb2, Arb3, Arb4
Frequency range:
Sin: 0.1 Hz to 25 MHz
Rectangular signal: 0.1 Hz to 10 MHz
Triangular signal: 0.1 Hz to 1 MHz  
Wavelength: 4KSa
Frequency accuracy: 100 ppm (<10 kHz) 50 ppm (>10 kHz)
Frequency resolution: 0.1 Hz or 4 bits
Output amplitude: 10mV to 7Vp-p (high impedance), 5mV~3.5Vp-p (50Ω)
DC offset: ±3.5V, high impedance, ±1.75V, 50 Ω
Output resolution: 100 μV or 3 bits
Output accuracy: 2% (1 kHz)
Output impedance 50 Ω

General parameters

TFT color LCD display with 7″ diagonal and 800 x 480 pixel resolution with adjustable backlight brightness
Interface: USB Host，USB Device
Probe compensation output
Output voltage: 2Vpp input ≥1MΩ load
Frequency: 1kHz
Power supply: 100-120 VAC RMS(±10%), 45Hz to 440Hz, CATⅡ, 120-240VACRMS(±10%), 45Hz to 66Hz, CATⅡ
Power consumption: <30W
T fuse, 3.15A, 250V, 5x20mm
Operating temperature: 0 to 50 °C
Dimensions: 318 x 110 x 150 mm
Weight: 1900 g
